GMDSS,ANNUAL RADIO,ANNUALS

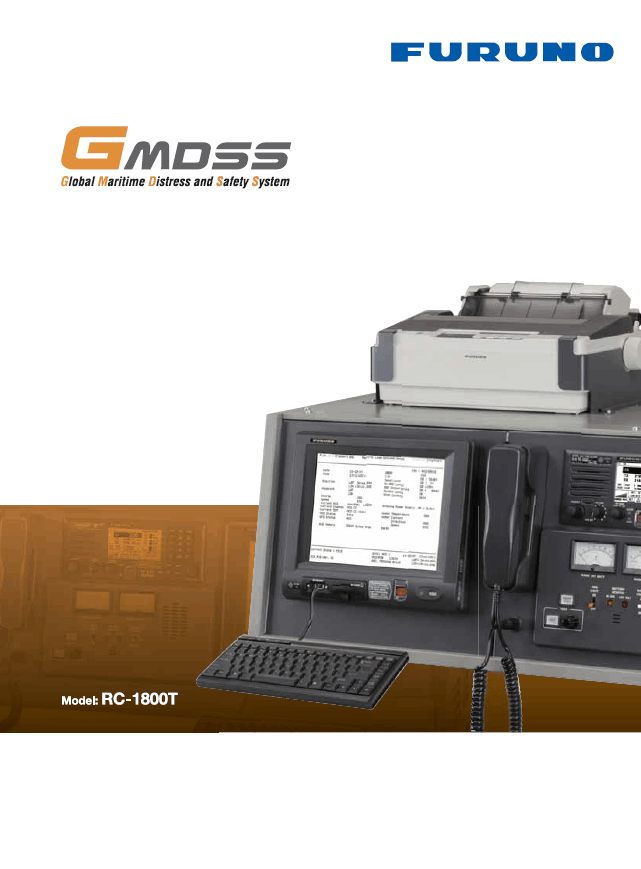

GMDSS

Global Maritime Distress and Safety System (GMDSS) has been developed by the maritime nations in the International Maritime Organization (IMO) and is the result of their adoption of amendments made in 1988 to the 1974 International Convention on the Safety of Life at Sea (SOLAS).

Based on recent developments in maritime communications, such as satellites and digital technology, GMDSS is designed to ensure maximum availability of safety-related communication for all passenger ships as well as for cargo vessels of 300 GT and upwards engaged in international voyages.*

The goal of GMDSS is to virtually guarantee that complying vessels will be able to communicate with an onshore station at any time, from any location, in case of distress or to exchange safety-related information.

Open PDF Brochure

RADIO ANNUALS,VHF

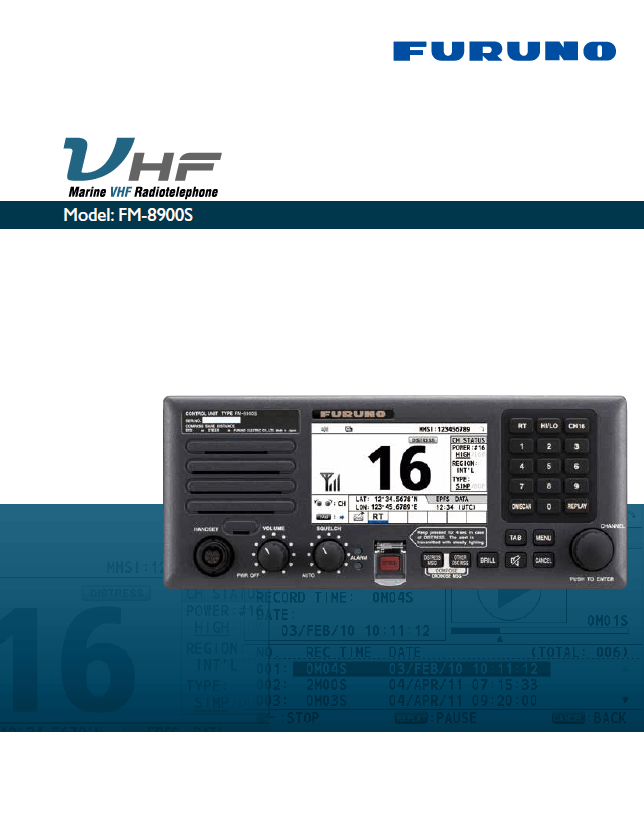

VHF

Full GMDSS-compliant VHF radiotelephone with Class-A DSC facility and CH70 watch reciever.

Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14

Semi-duplex 25-Watt VHF radiotelephone with a built-in Class-A DSC and CH70 watch Receiver

Fully meets GMDSS carriage requirements for SOLAS ships

Easy to read, high-contrast 4.3" bright color LCD

Enhanced noise reduction and speaker for superb voice quality

Quick access to CH16 key

Easy channel selection with rotary control or direct keypad input

Automatic entry of own ship position and time through the interfaced GPS receiver

ATIS signal transmission available for inland waterways

Connect to an office or home via an existing PSTN (Public Switched Telephone Network)

Open PDF Brochure

RADIO ANNUALS, MF/HF

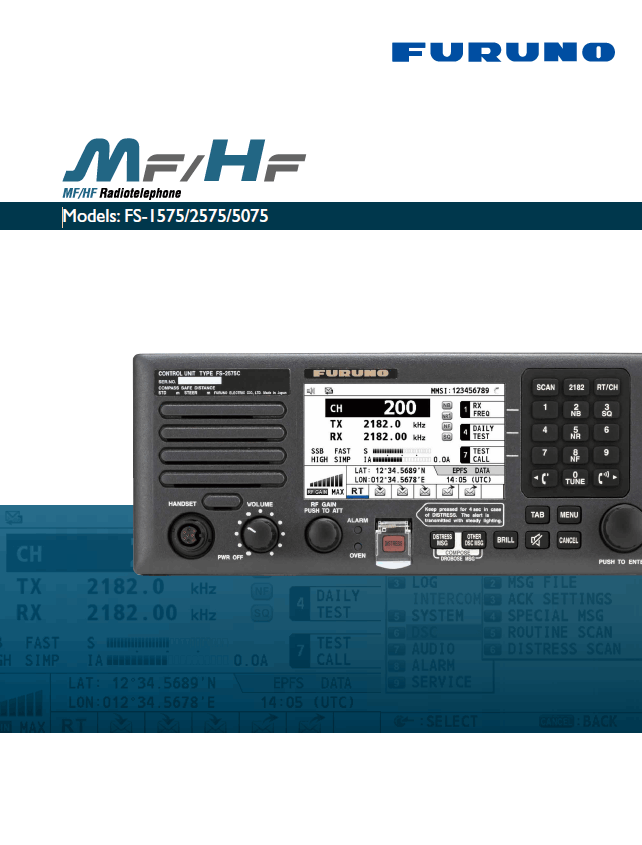

MF/HF


Reliable MF/HF Radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver

Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14

MF/HF radiotelephone with DSC facility

Fully meets GMDSS carriage requirements for SOLAS ships.

Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14

High-contrast 4.3" bright color LCD (480x272 pixels)

Capable of distress, safety and routine communication

Instant selection of 256 user-specifed channels with a rotary knob or direct keypad input

Quick access to DSC message composition by dedicated keys on the control unit

Quick access to dedicated functions in the menu operation using numeric keypad

Open PDF Brochure

NAVTEX,RADIO ANNUALS

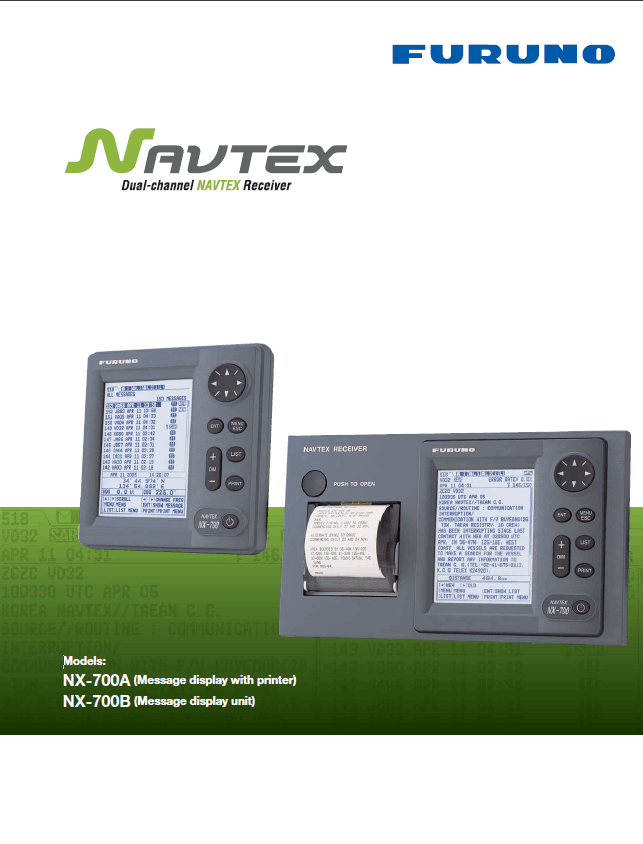

NAVTEX

Enhances the navigation efficiency and safety by watching NAVTEX messages broadcasted on both international and local channels

The NX-700 can receive the international NAVTEX messages as well as domestic or local NAVTEX messages at the same time.

Fully meets new IMO resolution MSC.148 (77) to be implemented on and after 1 July 2005 requiring

Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously

Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)

200 message of average length 500 characters can be stored in nonvolatile memory

Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception

Display messages on a clear 5" silver bright LCD
Low power consumption

NAV data display acts as NMEA repeater for GPS or instruments

Open PDF Brochure
